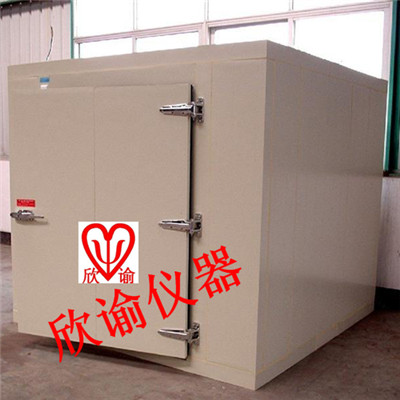

XY-GY-100配套速凍庫Frozen storage | |||||||||
產 品 結 構 Product structure | 技 術 參 數 Technical parameters | 備 注 Remarks | |||||||
設計標準：CGMP | |||||||||
※ 公用配供 public distribution | |||||||||
電源(三相五線制) Power（three-phase and five-wire system） | 380V/50HZ | ||||||||
電源功率 Power consumption | 5Kw | ||||||||
冷卻水量 Cooling water qty | ≥5m3/h(T≤30℃/P=0.1-0.15Mpa) | ||||||||
庫體體積 Library volume | 適合1輛料車 For 1 trolley | （按設計為準） According to the design | |||||||
結構型式 Structure | 速凍庫體+制冷機組 Frozen storage + Refrigerating unit | ||||||||
整機重量 Total weight | 600kg（約） | ||||||||
※ 速凍庫體 Frozen storage | |||||||||
性能參數Performance parameters | |||||||||
庫體容積 Storage volume | 1輛料車 1 set Trolley | ||||||||
主要部件Main components | |||||||||
速凍庫體材料 Frozen Storage material | 外層彩鋼板/內層不銹鋼板 Color steel outer / Stainless steel inner | ||||||||
庫板厚度 Storage plate thickness | 150mm | ||||||||
速凍庫體形狀 Frozen Storage shape | 矩形體型 Rectangular shape | ||||||||
速凍庫門 Frozen Storage door | 內層不銹鋼板 Stainless steel inner | ||||||||
開門方向 Opening direction | 按設計圖 By design | (用戶可選擇) (User selectable) | |||||||
速凍庫門密封 Frozen storage door seal | 箱門使用橡膠密封 Use rubber seal | 1副 | |||||||
庫體頂部料車導軌 Trolley guide at top of storage | SUS304 | 1根 1 piece | |||||||
技術特點Technical Features | |||||||||
1 | 不銹鋼板材均選用優秀品牌，經精密拋光，保證箱體表面粗糙度，從而保證無菌要求 Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements | ||||||||
2 | 庫體底部無任何部件，方便清潔和維護； There is not any parts at the bottom of storage for easy cleaning and maintenance; | ||||||||
※ 制冷系統Refrigeration System | |||||||||
性能參數Performance parameters | |||||||||
庫體溫度 (空載出風口溫度) Storage temperature (no load - outlet temperature) | ≤-45℃ | ||||||||
制品溫度（約）Product temperature | +20 - -40℃≤8h | ||||||||
主要部件Main components | |||||||||
壓縮機型號 compressor model | 德G比澤爾/S4T-5.2Y German BITZER/S4T-5.2Y | 1臺 1 set | |||||||
冷媒 Refrigerant | R404a | ||||||||
功率 Power | 4Kw | ||||||||
油分離器 Oil separator | 美G艾默生 USA EMERSON | 1只 1 piece | |||||||
氣液分離器 Vapor-liquid separator | 臺灣愛夢得 Taiwan Airmender | 1只 1 piece | |||||||
高壓保護器 High pressure protection device | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
低壓保護器 Low pressure protection device | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
油壓差控制器 Pressure differential controller | 德G比澤爾DELTA-PⅡ Germany BITZER DELTA-PⅡ | 1只 1 piece | |||||||
干燥過濾器 Dry filter | 美G艾默生 USA EMERSON | 1套 1 set | |||||||
冷媒視鏡 Refrigerant endoscopic | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 pieces | |||||||
高壓壓力表 High pressure gauges | 德G羅森博格 Germany Rothenberger | 1只 1 piece | |||||||
低壓壓力表 Low pressure gauges | 德G羅森博格 Germany Rothenberger | 3只 3 pieces | |||||||
膨脹閥 Expansion valve | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
電磁閥 Solenoid valve | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
水壓保護控制器 Protection Controller for water pressure | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
水冷式冷凝器 Water condenser | 杭州賽富特 Hangzhou safety | 1只 1 piece | |||||||
管道保溫 Pipe insulation | 美G福樂斯 USA ARMAFLEX | ||||||||
技術特點Technical Features | |||||||||
1 | 壓縮機采用比澤爾制冷壓縮機，性能更加穩定、可靠、維護方便 Compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain | ||||||||
2 | 壓縮機溫度與壓力多重保護功能 Temperature and pressure of compressor has multiple protection features | ||||||||
3 | 液體二次過冷:高壓液體進入中冷器前得到一次冷卻，避免電機在J端工況下發熱，同時回氣得到一定的過熱，避免壓縮機在J低吸氣壓力下工作 Liquid cooling for two times: the cooling before high-pressure liquid enter into condenser to avoid motor heating in extreme conditions. | ||||||||
4 | 采用符合蒙特利爾公約的環保型制冷劑 Compliance with the Montreal Convention, with environmentally friendly refrigerants; | ||||||||
※ 物料輸送系統Material handling system | |||||||||
性能參數Performance parameters | |||||||||
輸送方式 Transportation methods | 吊軌式 Performance parameters | ||||||||
主要部件Main components | |||||||||
料車軌道材料 track material of trolley | SUS304 | ||||||||
料車軌道長度 track length of trolley | 按設計圖紙 According to design drawings | ||||||||
技術特點Technical Features | |||||||||
1 | 采用吊軌式設計，傳送速度快，地面更干凈，更易清潔； Use hanging rail design, transmission speed faster, the ground cleaner and easy to clean. | ||||||||
※ 控制系統Control system | |||||||||
性能參數 | |||||||||
化霜方式 Defrost mode | 電熱自動化霜 heating and automatic defrost | ||||||||
主要部件Main components | |||||||||
控制方式 Control mode | 自動運行 Automatic operation | ||||||||
除霜型數顯溫度控制器 Defrost and digital temperature controller | ID974-230V(配溫度探頭2只) ID974-230V(with 2 pcs temperature probe ) | 1套 1 set | |||||||
接觸器 Contactor | 施耐德 Schneider | 1套 1 set | |||||||
空氣開關 Switch | 施耐德 Schneider | 1套 1 set | |||||||
控制電器柜 Electrical control cabinet | 單D式（安裝在制冷機組上） Single type (installed in the refrigeration unit ) | ||||||||
電器部件型號與數量按實際為準) (Electrical components of the model and quantity according to the actual date) | |||||||||
技術特點Technical Features | |||||||||
1 | 自動運行-按設定溫度自動運行，到達溫度自動停機； Automatically - automatically by setting the temperature to reach the temperature and automatic shutdown | ||||||||
2 | 自動化霜-根據速凍庫運行時間，自動定時化霜； Automatic- defrost automatically on time based on the operation of frozen body. | ||||||||
※ 驗證文件Verify file | |||||||||
1 | FAT工廠驗收測試The factory acceptance test | ||||||||
2 | SAT客戶現場驗收測試The customer site acceptance tests | ||||||||
3 | 操作手冊O(shè)perating Manual | ||||||||
4 | 維護手冊Maintenance Manual | ||||||||
5 | 平面布置圖Floorplan | ||||||||
6 | 電氣線路圖Electrical circuit diagram | ||||||||
7 | 主要部件說明書Main parts manual | ||||||||
